Prerequisite: Read Part 5 — Exporting Magento 2 Data: Flatten EAV with SQL & Node for data unpivoting fundamentals.

Magento Database Migration: Shared DB, CDC, or Event Bus?

Answer-first: While connecting new microservices directly to the existing Magento database (Shared Database pattern) appears tempting as a quick win, it introduces severe schema coupling, cross-service deadlock hazards, and violates core microservice boundaries. The 2027 production standard uses Debezium 3.0+ Change Data Capture (CDC) streaming row changes via Redpanda/Kafka into independent domain databases. This decouples schemas, guarantees sub-50ms data synchronization latency, and maintains dual-write integrity via the Transactional Outbox pattern.

When decomposing a monolithic commerce architecture, the database sync strategy dictates whether the migration succeeds smoothly or devolves into a data-corrupting distributed nightmare.

Teams often succumb to the “Shared Database” shortcut: pointing their new Go catalog service directly at Magento’s MySQL tables. Within weeks, indexer locks clash with Go connection pools, schema patches break microservice queries, and the team finds itself trapped in the worst of both worlds.

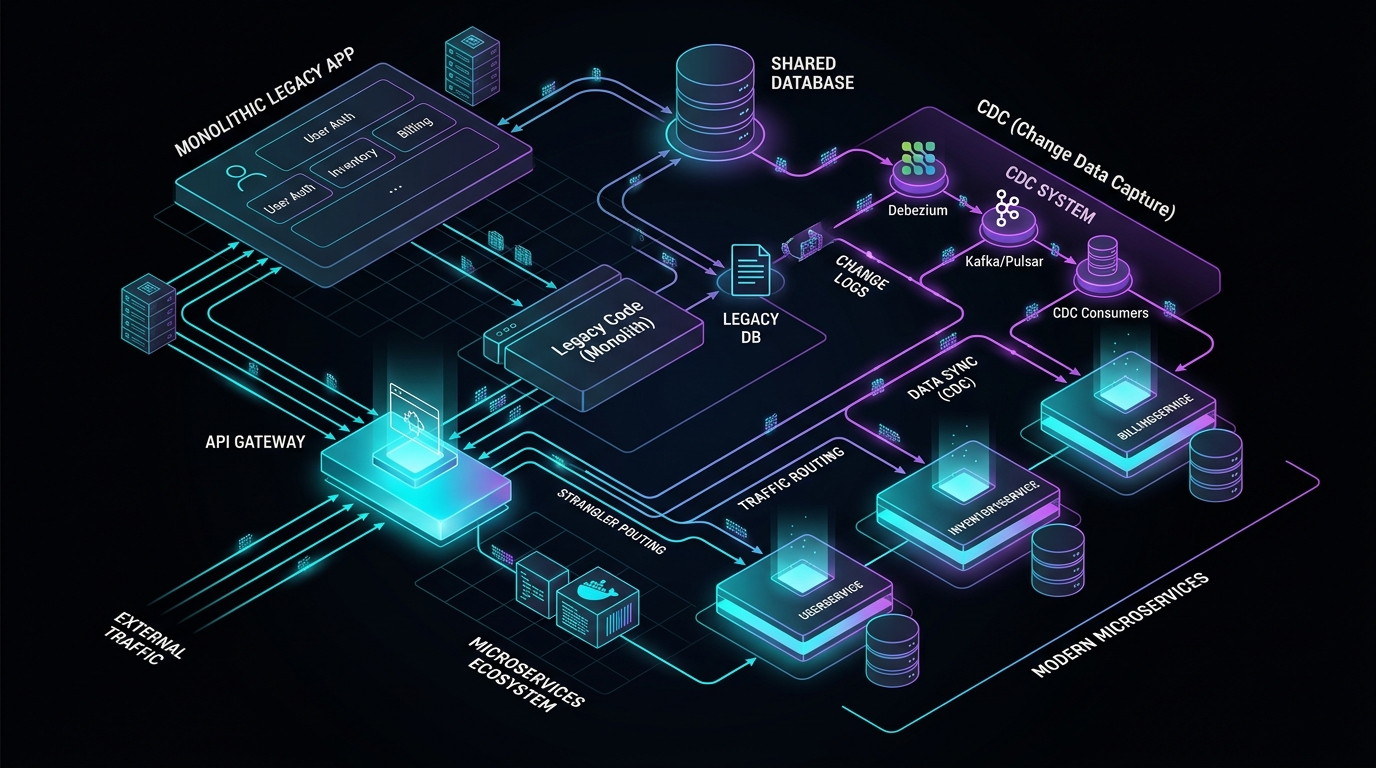

1. Architectural Topology: Shared DB Antipattern vs CDC Mesh

flowchart TD
    subgraph Antipattern ["1. Shared Database Antipattern (High Risk)"]
        MagentoPHP1["Magento Monolith"] --> MySQL_Shared["Single Shared MySQL Database"]
        GoCatalog1["Go Catalog Service"] --> MySQL_Shared
        GoCart1["Go Cart Service"] --> MySQL_Shared
        MySQL_Shared --> Deadlock["Schema Coupling & Cross-Service Deadlocks"]
    end

    subgraph Recommended_CDC ["2. Debezium 3.0+ CDC Architecture (Production Standard)"]
        MagentoPHP2["Magento Monolith"] --> MySQL_Source["Magento MySQL 8.4 (Binlog Enabled)"]
        MySQL_Source --> Debezium["Debezium 3.0+ CDC Engine"]
        Debezium --> Redpanda["Redpanda / Kafka Event Stream"]

        Redpanda --> Worker1["Catalog Sync Worker"]
        Redpanda --> Worker2["Inventory Sync Worker"]

        Worker1 --> CatalogDB["Private PostgreSQL Catalog DB"]
        Worker2 --> InventoryDB["Private Redis / PostgreSQL Inventory DB"]
    end

2. Transactional Outbox Pattern for Go Microservices

When Go microservices update domain state, they must emit events to Kafka without risking split-brain discrepancies. The Transactional Outbox Pattern ensures that database state changes and event records commit atomically in a single local transaction:

sequenceDiagram
    autonumber
    participant App as "Order Service (Go)"
    participant DB as "PostgreSQL Private DB"
    participant Relay as "Outbox Polling Relay / Debezium"
    participant Kafka as "Redpanda / Kafka Bus"

    App->>DB: BEGIN Transaction
    App->>DB: INSERT INTO orders (...)
    App->>DB: INSERT INTO outbox_events (event_id, payload, status='PENDING')
    App->>DB: COMMIT Transaction

    Note over DB: Atomically committed! Zero risk of ghost events.
    Relay->>DB: SELECT * FROM outbox_events WHERE status='PENDING'
    Relay->>Kafka: Publish Event to 'commerce.orders.v1'
    Relay->>DB: UPDATE outbox_events SET status='PUBLISHED' WHERE event_id=...

3. Production Debezium Connector Configuration

The following JSON configuration registers a high-speed Debezium MySQL connector monitoring Magento order and quote changes:

{
  "name": "magento-cdc-connector",
  "config": {
    "connector.class": "io.debezium.connector.mysql.MySqlConnector",
    "tasks.max": "1",
    "database.hostname": "aurora-mysql.internal.net",
    "database.port": "3306",
    "database.user": "debezium_cdc",
    "database.password": "${env:CDC_PASSWORD}",
    "database.server.id": "184054",
    "topic.prefix": "magento_cdc",
    "table.include.list": "magento2.sales_order,magento2.sales_order_item,magento2.cataloginventory_stock_item",
    "schema.history.internal.kafka.bootstrap.servers": "redpanda.internal.net:9092",
    "schema.history.internal.kafka.topic": "schema-changes.magento",
    "decimal.handling.mode": "double",
    "tombstones.on.delete": "true"
  }
}

4. 16-Dimension Synchronization Strategy Evaluation Matrix

❓ Frequently Asked Questions (FAQ)

🔗 Next Step: Proceed to Part 7 — Laravel vs Golang: When to Add Features in Each?.
