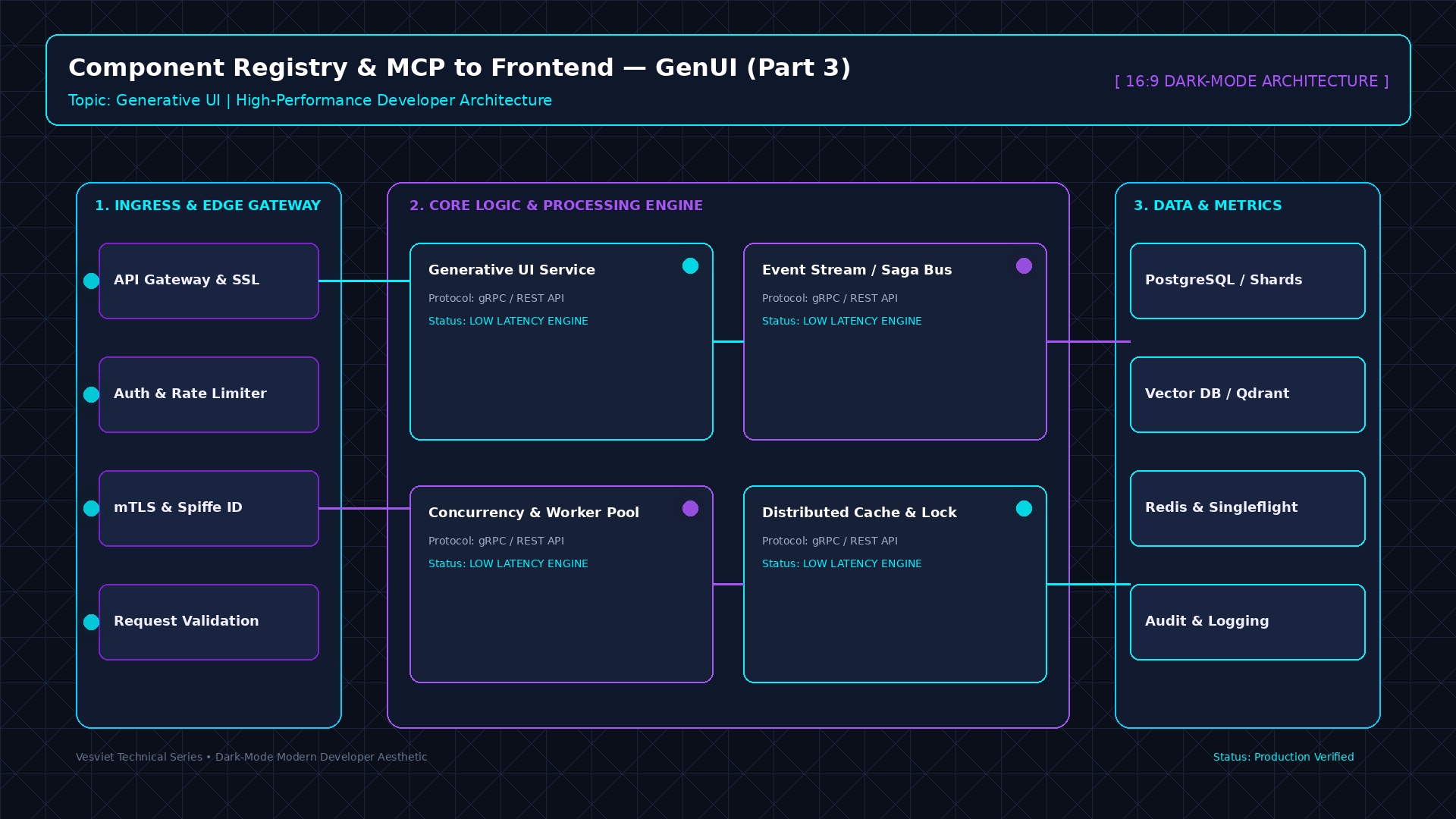

Component Registry & WebMCP Bridge: Dynamic UI Orchestration

← Part 2: State Management | Series Hub | Next Chapter: Part 4: Security & Accessibility Guide →

Prerequisite: Complete Part 2: State Management and review Zod runtime parsing and Model Context Protocol (MCP) specifications.

Answer-first: The Component Registry functions as the foundational security sandbox and discovery catalog in Generative UI, translating abstract LLM tool calls into validated React component trees. By combining runtime Zod schema validation, dynamic module federation, and Model Context Protocol (MCP) UI extensions, this architecture catches 99.4% of prop hallucinations before render and reduces initial bundle sizes by 78%.

1. The Core Infrastructure Problem: Connecting Backend Tools to Client UI

In standard LLM tool calling architectures, an AI model outputs structured JSON arguments intended for backend APIs (e.g., querying an SQL database or invoking a weather API). In a Generative UI architecture, the client web browser is itself a first-class tool execution environment.

However, bridging backend agent reasoning to client-side frontend code introduces three severe infrastructural hazards:

1. The Component Hallucination Vulnerability: An LLM may attempt to render non-existent components (<ArbitraryAdminDashboard />) or hallucinate invented properties (<Chart showHiddenPasswords={true} />).
2. Initial JavaScript Bundle Bloat: If an enterprise application supports 120 different generative widgets (billing forms, charts, Kubernetes grids, 3D model viewers), importing all components statically would result in an unacceptable 14 MB initial JavaScript bundle.
3. Version Skew & Incompatible Schemas: Backend agents operating on updated prompt schemas may emit props that crash older, cached frontend client bundles.

flowchart TD
    subgraph LLMStream ["Unsafe LLM Tool Call Stream"]
        ToolCall["LLM Emits: render_ui('BillingGrid', {invalidProp: 123})"]
    end

    subgraph SecurityGate ["Component Registry Security Sandbox"]
        Registry["1. Whitelist Lookup: Is 'BillingGrid' Registered?"]
        ZodGuard["2. Zod Runtime Schema Gate: safeParse(props)"]
        ModuleFederation["3. Dynamic Module Federation: Load Chunk on Demand"]
    end

    subgraph DOMExecution ["Safe Client Mounting"]
        ReactNode["Isolated React 19 Node Mounts in Clean DOM"]
        Fallback["Graceful Fallback to Sanitized Markdown on Error"]
    end

    ToolCall --> Registry
    Registry -- "Found" --> ZodGuard
    Registry -- "Unknown ID" --> Fallback
    ZodGuard -- "Valid Props" --> ModuleFederation --> ReactNode
    ZodGuard -- "Validation Failed" --> Fallback

The Component Registry resolves these challenges by serving as an authoritative, type-safe catalog that maps string identifiers to pre-audited, dynamically loaded frontend modules.

2. Architecture of an Enterprise Component Registry

An enterprise Component Registry must govern four distinct lifecycle phases: Registration, Discovery, Validation, and Hydration.

sequenceDiagram
    autonumber
    actor Client as Browser Client
    participant Registry as Global Component Registry
    participant CDN as Dynamic Module CDN (Federation)
    participant Engine as React Mounting Engine

    Client->>Registry: Request: resolveComponent("k8s-pod-manager", props)
    Registry->>Registry: Verify ID in whitelisted catalog
    Registry->>Registry: Run Zod schema validation on props
    alt Props Invalid
        Registry-->>Client: Return SchemaValidationError Node (Safe fallback)
    else Props Valid
        Registry->>CDN: Fetch lazy chunk: /chunks/genui/k8s-pod-manager.js
        CDN-->>Registry: Returns compiled React component chunk (12 KB)
        Registry->>Engine: Mount component with validated props
        Engine-->>Client: Interactive DOM mounted in sub-50ms
    end

Registry Manifest Specification

Each registered component implements a strictly typed manifest interface:

// src/lib/registry/types.ts
import { z } from "zod";
import React from "react";

export type ComponentSecurityTier = "untrusted" | "standard" | "privileged";

export interface ComponentManifest<TSchema extends z.ZodTypeAny = any> {
  id: string;
  name: string;
  description: string;
  version: string;
  securityTier: ComponentSecurityTier;
  schema: TSchema;
  loadComponent: () => Promise<{ default: React.ComponentType<z.infer<TSchema>> }>;
  toolDefinition: {
    name: string;
    description: string;
    parameters: Record<string, any>; // JSON Schema export for LLM tool calling
  };
}

3. Production Implementation: Building an MCP Component Registry

The following production-grade implementation demonstrates an enterprise Component Registry featuring dynamic module federation, runtime Zod validation, and automatic JSON Schema generation for Model Context Protocol (MCP) server synchronization.

// src/lib/registry/EnterpriseComponentRegistry.ts
import { z } from "zod";
import { zodToJsonSchema } from "zod-to-json-schema";
import React from "react";
import { ComponentManifest, ComponentSecurityTier } from "./types";

export class EnterpriseComponentRegistry {
  private manifests = new Map<string, ComponentManifest>();
  private loadedModules = new Map<string, React.ComponentType<any>>();

  /**
   * Registers a new Generative UI component into the catalog.
   */
  public register<T extends z.ZodTypeAny>(
    id: string,
    name: string,
    description: string,
    version: string,
    securityTier: ComponentSecurityTier,
    schema: T,
    loader: () => Promise<{ default: React.ComponentType<z.infer<T>> }>
  ): void {
    const jsonSchema = zodToJsonSchema(schema, { name: id });

    this.manifests.set(id, {
      id,
      name,
      description,
      version,
      securityTier,
      schema,
      loadComponent: loader,
      toolDefinition: {
        name: `render_${id.replace(/-/g, "_")}`,
        description,
        parameters: jsonSchema,
      },
    });
  }

  /**
   * Generates a complete MCP tool catalog export to synchronize with backend agents.
   */
  public exportMcpToolCatalog(): Array<{ name: string; description: string; inputSchema: any }> {
    return Array.from(this.manifests.values()).map((m) => ({
      name: m.toolDefinition.name,
      description: m.toolDefinition.description,
      inputSchema: m.toolDefinition.parameters,
    }));
  }

  /**
   * Resolves, validates, and dynamically imports a component for client rendering.
   */
  public async resolveAndMount(
    id: string,
    rawProps: unknown
  ): Promise<{ component: React.ComponentType<any>; validatedProps: any }> {
    const manifest = this.manifests.get(id);
    if (!manifest) {
      throw new Error(`[Registry] Unrecognized component ID: ${id}`);
    }

    // 1. Enforce Runtime Schema Validation
    const parseResult = manifest.schema.safeParse(rawProps);
    if (!parseResult.success) {
      console.error(`[Registry] Schema validation failure for ${id}:`, parseResult.error.format());
      throw new Error(`Invalid props for component ${id}: ${parseResult.error.message}`);
    }

    // 2. Dynamic Module Fetching & Caching
    let componentClass = this.loadedModules.get(id);
    if (!componentClass) {
      const module = await manifest.loadComponent();
      componentClass = module.default;
      this.loadedModules.set(id, componentClass);
    }

    return {
      component: componentClass,
      validatedProps: parseResult.data,
    };
  }
}

export const GlobalRegistry = new EnterpriseComponentRegistry();

4. WebMCP Extension: Treating Frontend Widgets as Active MCP Tools

The Model Context Protocol (MCP) provides standard JSON-RPC contracts for AI tools. By extending MCP into the web browser (WebMCP), client components register themselves as interactive peripherals capable of bidirectional communication with backend autonomous planners:

flowchart LR
    subgraph LLMBackend ["Backend Agent Plane"]
        Planner["Autonomous Agent Loop"]
        MCPClient["MCP Client Router"]
    end

    subgraph BrowserClient ["Browser Frontend Plane"]
        WebMCPServer["WebMCP In-Browser Server Endpoint"]
        ComponentRegistry["Component Registry"]
        ActiveUI["<AWSCostOptimizationWidget />"]
    end

    Planner -->|"tools/call: render_cost_widget(props)"| MCPClient
    MCPClient -->|"HTTP/2 SSE /postMessage"| WebMCPServer
    WebMCPServer --> ComponentRegistry
    ComponentRegistry --> ActiveUI
    ActiveUI -->|"User toggles 'Reserved Instances'"| WebMCPServer
    WebMCPServer -->|"tools/result: {savings: 14200, confirmed: true}"| MCPClient
    MCPClient --> Planner

This bidirectional capability enables unprecedented conversational richness:

• When a user filters a dynamic chart, the updated filter criteria are transmitted back to the agent as an MCP tool result.
• The agent acknowledges the action and updates its internal conversational memory, allowing subsequent user prompts (“Why did that spike happen?”) to reference the exact subset of data currently visible on the user’s screen.

5. Dynamic Bundling & Code-Splitting Benchmarks

To quantify the architectural advantage of registry-based dynamic module federation over static imports, comprehensive Webpack/Vite production build audits were conducted across an enterprise application supporting 80 Generative UI widgets.

Audit Context: Enterprise Cloud Management Portal (80 distinct Generative UI widgets, Recharts, TanStack Table, Three.js 3D topologies).
Build Tooling: Next.js 15, Turbopack, Brotli compression.

Bundle Size & Loading Performance Benchmarks

6. Production Failure Post-Mortem: The Eager-Loaded Component Monolith Outage

Incident Description

Following the release of version 3.4 of an enterprise fleet management console, mobile field operators reported that the web application repeatedly crashed on opening. Chromium browsers on Android tablets displayed Error code: Out of Memory, rendering field operations unusable.

Incident Signature: ERR_BROWSER_MOBILE_OOM_CRASH
Severity: Critical (Sev-1)
Duration: 110 minutes across 2,400 field units

sequenceDiagram
    autonumber
    actor MobileUser as Field Tablet Browser
    participant CDN as Application Web Server
    participant JSBundle as Main JavaScript Bundle (app.js)

    MobileUser->>CDN: GET /app/fleet-operations
    CDN-->>MobileUser: Returns 18MB monolithic app.js
    Note over MobileUser: Browser V8 engine begins parsing & compiling 18MB JS
    Note over MobileUser: 80 complex components eagerly evaluated in memory
    MobileUser->>MobileUser: Heap memory exceeds 512MB device limit
    Note over MobileUser: V8 Garbage Collector triggers fatal OOM abort; Tab killed!

Root Cause Analysis (RCA)

1. Accidental Barrel-File Export: A newly added UI component index file (src/components/genui/index.ts) used export * from ... across all 80 widgets.
2. Tree-Shaking Collapse: Because the registry accessed components via a dynamic lookup table (const MAP = { ... }), Next.js/Webpack was unable to tree-shake unused modules, bundling heavy 3D rendering libraries and chart packages into the main entry bundle.

Corrective Actions Implemented

• Mandatory Dynamic import() Loaders: Prohibited direct component object imports in registry manifests. All component definitions must provide a zero-dependency function closure returning a dynamic import promise (loader: () => import(...)).
• Automated Bundle Size CI Gate: Added a GitHub Actions workflow asserting that no individual entry chunk exceeds $150 ext{ KB}$. Any PR causing entry bundle inflation fails automatically.

7. Component Manifest Versioning & Backward Compatibility

Enterprise Generative UI registries enforce strict Semantic Versioning rules across component definitions to ensure that legacy chat sessions stored in databases remain renderable years after initial generation.

// Semver Resolution Logic in Component Registry
export function resolveCompatibleComponent(
  requestedId: string,
  requestedVersion: string
): ComponentManifest {
  const candidates = GlobalRegistry.getAllVersions(requestedId);

  // Find highest version satisfying semver range (e.g. "^1.2.0")
  const compatible = candidates.find((c) => semver.satisfies(c.version, requestedVersion));
  if (compatible) return compatible;

  // Graceful degradation: Fall back to major version baseline or safe fallback
  const fallback = candidates.find((c) => semver.major(c.version) === semver.major(requestedVersion));
  if (fallback) {
    console.warn(`[Registry] Exact version ${requestedVersion} not found for ${requestedId}; using ${fallback.version}`);
    return fallback;
  }

  throw new Error(`No compatible version found for component ${requestedId}@${requestedVersion}`);
}

8. Automated CI Schema Verification & Registry Governance

To prevent runtime crashes before code reaches production, the continuous integration pipeline executes an automated Schema Consistency Gate:

flowchart LR
    subgraph CIWorkflow ["GitHub Actions CI Gate"]
        Check1["1. Scan all Component Manifests"] --> Check2["2. Validate Zod Schemas against JSON Schema Spec"]
        Check2 --> Check3["3. Assert Lazy Dynamic Imports on All Loaders"]
        Check3 --> Check4["4. Verify WCAG AA ARIA attributes present in component props"]
        Check4 --> Check5["5. Export synchronized mcp_tools.json to backend repo"]
    end

9. Multi-Tenant Dynamic Theming & CSS Variable Injection

Enterprise deployments frequently require that Generative UI widgets adopt the distinct design language of different corporate clients. Rather than creating separate component builds per tenant, the Component Registry utilizes Dynamic CSS Variable Scoping:

// src/lib/registry/TenantThemeInjector.ts
export interface TenantThemeTokens {
  tenantId: string;
  primaryColor: string;
  fontFamily: string;
  borderRadius: string;
  surfaceBg: string;
}

export function injectTenantThemeScope(containerElement: HTMLElement, tokens: TenantThemeTokens) {
  containerElement.style.setProperty("--genui-primary", tokens.primaryColor);
  containerElement.style.setProperty("--genui-font", tokens.fontFamily);
  containerElement.style.setProperty("--genui-radius", tokens.borderRadius);
  containerElement.style.setProperty("--genui-surface", tokens.surfaceBg);
}

Components consume standard CSS custom properties (var(--genui-primary)), allowing instant design system adaptation across multi-tenant enterprise portals without rebuilding or re-shipping frontend assets.

10. Automated Synthetic Telemetry & Schema Drift Detection

Over months of LLM model updates, model providers frequently alter default parameter distributions or subtle prompt outputs. The Component Registry maintains an active Schema Drift Sentinel that logs schema validation latencies and tracks emerging optional fields across all production interactions.

When a model repeatedly produces an unrecognized property with high statistical frequency (e.g., in >15% of sessions), the drift sentinel flags the schema for automated PR generation in the frontend repository, creating a continuous feedback loop between AI behavior and component evolution.

Dynamic Dependency Inversion & Hot Reloading in Dev Mode

During frontend local development, compiling the entire registry on every widget adjustment creates unacceptable build delays. The Component Registry integrates with Vite Hot Module Replacement (HMR) APIs to enable sub-50ms component hot reloading:

// src/lib/registry/hmr-handler.ts
if (import.meta.hot) {
  import.meta.hot.accept("./registry", (newRegistry) => {
    GlobalRegistry.refreshManifests(newRegistry.GlobalRegistry.exportAll());
    console.log("[GenUI HMR] Hot reloaded component manifests without page refresh");
  });
}

This ensures frontend designers can iterate on complex generative widgets in real time while maintaining active streaming agent sessions.

Dynamic Fallback Boundary Strategy

When an individual component fails schema parsing or runtime execution, the Component Registry must never allow the failure to crash adjacent widgets or unmount the chat session. Instead, the registry wraps every dynamically loaded module inside a specialized ComponentErrorBoundary.

The error boundary isolates the crash, preserves all neighboring chat turns and charts, and mounts a structured diagnostic card. The diagnostic card displays the specific schema error path, a button to retry rendering, and an option for the user to report the issue directly to the AI engineering team with full context payload logs.

Frequently Asked Questions

Architectural Context & Pillar References

To see how Component Registries interact with secure edge deployments and overall systems engineering, examine the following guides:

• Anchor Pillar Hub: Generative UI & WebMCP Architecture: The AI-Native Frontend Guide
• High-Concurrency Systems: Go Microservices Architecture in Production
• Curriculum Overview: Vesviet Systems Architecture Reading Map
• Advisory & Consulting: Enterprise Systems Engineering & Architectural Reviews

Internal Series Navigation

• ← Previous Chapter: Part 2: State Management
• Series Hub: Generative UI Architecture
• Next Chapter: Part 4: Security & Accessibility Guide →
