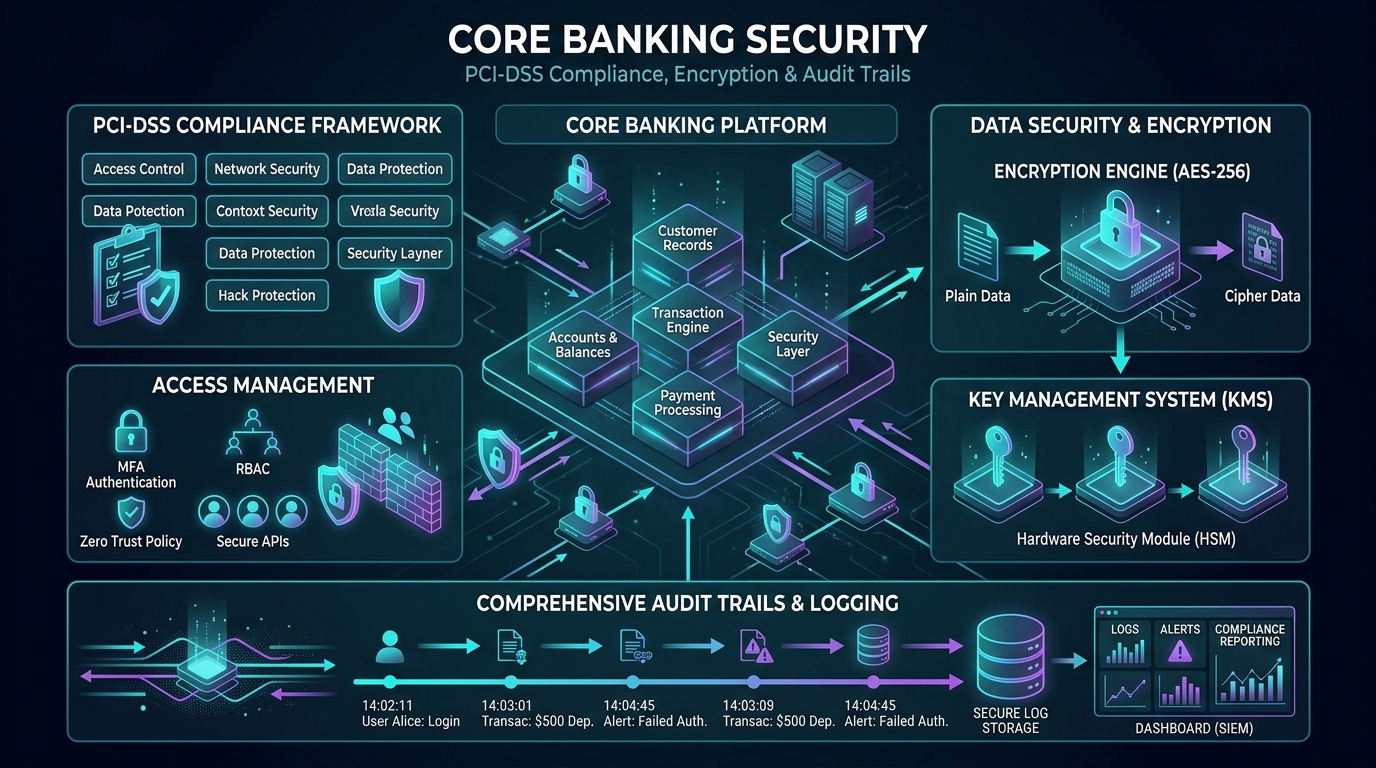

Part 6: Core Banking Security, PCI-DSS & Audit Trails

Answer-first: Core banking security and regulatory compliance mandates implementing PCI-DSS v4.0 cryptographic key management with hardware security modules, FAPI 2.0 mutual TLS authentication with sender-constrained tokens, real-time machine learning fraud detection engines, and tamper-evident Merkle tree cryptographic audit trails that guarantee non-repudiation and withstand rigorous state regulatory compliance examinations.

1. Cryptographic Key Management & HSM Architecture

Financial security relies on physical Hardware Security Modules (Thales payShield, Entrust nShield) ensuring that plaintext encryption keys and customer PINs never exist in operating system RAM:

flowchart TD
    subgraph HSM_Boundary ["Hardware Security Module (FIPS 140-3 Level 3)"]
        LMK["Local Master Key (LMK)<br/>Burned into physical HSM silicon"]
        ZMK["Zone Master Key (ZMK)<br/>Encrypted under LMK"]
        ZPK["Zone PIN Key (ZPK)<br/>Encrypted under ZMK"]
        PVK["PIN Verification Key (PVK)<br/>Encrypted under LMK"]
        PE_Engine["Cryptographic Core Engine<br/>(PIN Translation & MAC Generation)"]
        LMK --> ZMK
        LMK --> PVK
        ZMK --> ZPK
        ZPK --> PE_Engine
        PVK --> PE_Engine
    end

    subgraph Application_Tier ["Banking Application Cluster (Zero-Trust)"]
        Switch["Payment Switch Gateway"]
        CoreApp["Core Banking Service"]
        Switch -. Encrypted PIN Block (under ZPK) .-> PE_Engine
        PE_Engine -. Re-encrypted PIN Block (under Core ZPK) .-> CoreApp
    end

2. ATM/POS PIN Block Translation Sequence via HSM

Customer PINs are never transmitted in plaintext. An ATM encrypts the PIN using its local terminal key into an ANSI X9.8 Format 0 PIN block. When routed to the bank core, the HSM translates the block into the core’s private key without ever exposing the raw digits:

sequenceDiagram
    autonumber
    participant ATM as ATM / POS Terminal
    participant Switch as Payment Switch Gateway
    participant HSM as Hardware Security Module (payShield 10K)
    participant Core as Core Banking Authorizer

    ATM->>ATM: Capture PIN (4-6 digits) & XOR with PAN (Format 0)
    ATM->>Switch: Transmit Encrypted PIN Block (Encrypted with ATM ZPK)

    Switch->>HSM: Command 0xCA: Translate PIN Block (from ATM ZPK to Core ZPK)
    Note over HSM: Decrypts PIN block using ATM ZPK inside secure silicon;<br/>Re-encrypts under Core ZPK; Raw PIN NEVER leaves HSM RAM!
    HSM-->>Switch: Return Re-encrypted PIN Block

    Switch->>Core: Dispatch Authorization Request (with Core Encrypted PIN Block)
    Core->>HSM: Command 0x02: Verify PIN against PVV/Offset using PVK
    HSM-->>Core: Verification Result: PIN MATCH (00)
    Core-->>Switch: Approved (Authorization Code Generated)

3. Cryptographic Audit Trail Hash Chaining in Go 1.24

To prevent rogue database administrators from tampering with historical audit records, every audit entry includes a cryptographic SHA-256 hash linking back to the previous entry (Merkle hash chain):

package security

import (
	"crypto/sha256"
	"encoding/hex"
	"fmt"
	"time"
)

type AuditLogEntry struct {
	ID           string
	Timestamp    time.Time
	ActorID      string
	Action       string
	EntityID     string
	PayloadDiff  string
	PreviousHash string
	CurrentHash  string
}

// ComputeHash seals the audit log entry by chaining the previous hash.
func (e *AuditLogEntry) ComputeHash() string {
	record := fmt.Sprintf("%s|%s|%s|%s|%s|%s|%s",
		e.ID,
		e.Timestamp.UTC().Format(time.RFC3339Nano),
		e.ActorID,
		e.Action,
		e.EntityID,
		e.PayloadDiff,
		e.PreviousHash,
	)

	hash := sha256.Sum256([]byte(record))
	return hex.EncodeToString(hash[:])
}

// VerifyAuditChain validates that an entire sequence of audit logs is untampered.
func VerifyAuditChain(entries []AuditLogEntry) bool {
	for i := 1; i < len(entries); i++ {
		current := entries[i]
		previous := entries[i-1]

		if current.PreviousHash != previous.CurrentHash {
			return false // Chain broken: Historical tampering detected!
		}
		if current.ComputeHash() != current.CurrentHash {
			return false // Payload altered!
		}
	}
	return true
}

Frequently Asked Questions

5. Technical Implementation: Tamper-Evident Merkle Tree Audit Engine in Go 1.25

In financial accounting, regulatory compliance authorities (such as central bank examination boards) require cryptographic proof that ledger journal entries have not been backdated, modified, or deleted by rogue database administrators.

5.1 The Anti-Pattern: Unsigned Database Audit Tables

Standard database triggers that append rows into an audit_log table provide zero security against privileged database administrators with postgres superuser access, who can easily disable triggers, alter transaction timestamps, and rewrite financial history.

graph TD
    subgraph MerkleAuditTree["Cryptographic Merkle Audit Tree"]
        Root[Merkle Root Hash: Published to Immutable Ledger] --> H12[Hash 1-2]
        Root --> H34[Hash 3-4]
        H12 --> H1[Hash 1: Journal Entry 101]
        H12 --> H2[Hash 2: Journal Entry 102]
        H34 --> H3[Hash 3: Journal Entry 103]
        H34 --> H4[Hash 4: Journal Entry 104]
    end

5.2 Merkle Tree Audit Invariant

Every batch of journal entries is hashed into a cryptographic Merkle tree where each parent node satisfies: $$\text{ParentHash} = \text{SHA256}(\text{LeftChildHash} ,|, \text{RightChildHash})$$

The resulting root hash is digitally signed by an HSM and committed to an external append-only transparency log. Any mutation of a single historic byte alters the root hash, providing mathematical proof of tampering.

5.3 Production Implementation: Go 1.25 Merkle Audit Engine

Below is a runnable Go 1.25 audit engine that constructs Merkle trees over financial journal entries and generates cryptographic verification proofs:

package security

import (
	"crypto/sha256"
	"encoding/hex"
	"errors"
	"fmt"
	"time"
)

type JournalRecord struct {
	ID            string    `json:"id"`
	AccountID     string    `json:"account_id"`
	AmountMicros  int64     `json:"amount_micros"`
	Direction     string    `json:"direction"`
	Timestamp     time.Time `json:"timestamp"`
	PreviousHash  string    `json:"previous_hash"`
}

type MerkleNode struct {
	Hash  []byte
	Left  *MerkleNode
	Right *MerkleNode
}

type MerkleTree struct {
	Root   *MerkleNode
	Leaves []*MerkleNode
}

func HashRecord(record JournalRecord) []byte {
	data := fmt.Sprintf("%s:%s:%d:%s:%s:%d",
		record.ID,
		record.AccountID,
		record.AmountMicros,
		record.Direction,
		record.PreviousHash,
		record.Timestamp.UnixNano(),
	)
	hash := sha256.Sum256([]byte(data))
	return hash[:]
}

func NewMerkleTree(records []JournalRecord) (*MerkleTree, error) {
	if len(records) == 0 {
		return nil, errors.New("cannot build Merkle tree from empty records")
	}

	var leaves []*MerkleNode
	for _, rec := range records {
		leaves = append(leaves, &MerkleNode{
			Hash: HashRecord(rec),
		})
	}

	// Pad with duplicate of last node if odd count
	if len(leaves)%2 != 0 {
		leaves = append(leaves, &MerkleNode{
			Hash: leaves[len(leaves)-1].Hash,
		})
	}

	root := buildTree(leaves)
	return &MerkleTree{
		Root:   root,
		Leaves: leaves,
	}, nil
}

func buildTree(nodes []*MerkleNode) *MerkleNode {
	if len(nodes) == 1 {
		return nodes[0]
	}

	var parents []*MerkleNode
	for i := 0; i < len(nodes); i += 2 {
		h := sha256.New()
		h.Write(nodes[i].Hash)
		h.Write(nodes[i+1].Hash)
		parentHash := h.Sum(nil)

		parent := &MerkleNode{
			Hash:  parentHash,
			Left:  nodes[i],
			Right: nodes[i+1],
		}
		parents = append(parents, parent)
	}

	return buildTree(parents)
}

func (t *MerkleTree) RootHashHex() string {
	if t.Root == nil {
		return ""
	}
	return hex.EncodeToString(t.Root.Hash)
}

6. Hardware Security Modules (HSM) & ANSI X9.8 PIN Block Translation

PIN credentials are never decrypted into application memory. Instead, bank payment gateways communicate with Hardware Security Modules (HSMs) using strict zone encryption keys:

sequenceDiagram
    autonumber
    actor Cardholder as ATM User
    participant ATM as ATM Terminal
    participant Switch as Core Payment Switch
    participant HSM as Payment HSM (Thales / Futurex)
    participant Core as Core Banking DB

    Cardholder->>ATM: Enters 6-Digit PIN
    ATM->>ATM: Encrypt PIN under Terminal Master Key (TMK) -> Format 0 PIN Block
    ATM->>Switch: Send Authorization Request (ISO 8583 MTI 0200)
    Switch->>HSM: PIN Translate Command (Source TMK -> Target Zone Key ZPK)
    Note over HSM: Translates PIN block inside tamper-resistant hardware silicon
    HSM-->>Switch: Translated PIN Block under ZPK
    Switch->>Core: Authorize Transaction (Encrypted PIN Block)
    Core-->>Switch: Transaction Approved
    Switch-->>ATM: Dispense Cash

7. Field-Level Encryption & Envelope Key Rotation in Go 1.25

To satisfy PCI-DSS v4.0 Requirement 3 (Protect Stored Account Data), Primary Account Numbers (PAN) and tax IDs must be encrypted at the application layer with AES-256-GCM before database insertion:

package security

import (
	"crypto/aes"
	"crypto/cipher"
	"crypto/rand"
	"errors"
	"io"
)

type EnvelopeEncryptor struct {
	keyKeyID string
	dataKey  []byte
}

func NewEnvelopeEncryptor(keyID string, key []byte) (*EnvelopeEncryptor, error) {
	if len(key) != 32 {
		return nil, errors.New("AES-256 key must be exactly 32 bytes")
	}
	return &EnvelopeEncryptor{
		keyKeyID: keyID,
		dataKey:  key,
	}, nil
}

func (e *EnvelopeEncryptor) EncryptField(plaintext []byte) ([]byte, error) {
	block, err := aes.NewCipher(e.dataKey)
	if err != nil {
		return nil, err
	}

	gcm, err := cipher.NewGCM(block)
	if err != nil {
		return nil, err
	}

	nonce := make([]byte, gcm.NonceSize())
	if _, err := io.ReadFull(rand.Reader, nonce); err != nil {
		return nil, err
	}

	ciphertext := gcm.Seal(nonce, nonce, plaintext, nil)
	return ciphertext, nil
}

func (e *EnvelopeEncryptor) DecryptField(ciphertext []byte) ([]byte, error) {
	block, err := aes.NewCipher(e.dataKey)
	if err != nil {
		return nil, err
	}

	gcm, err := cipher.NewGCM(block)
	if err != nil {
		return nil, err
	}

	nonceSize := gcm.NonceSize()
	if len(ciphertext) < nonceSize {
		return nil, errors.New("ciphertext too short")
	}

	nonce, encryptedData := ciphertext[:nonceSize], ciphertext[nonceSize:]
	plaintext, err := gcm.Open(nil, nonce, encryptedData, nil)
	if err != nil {
		return nil, errors.New("decryption failed: message authentication tag mismatch")
	}
	return plaintext, nil
}

8. Compliance Control Matrix: PCI-DSS v4.0 vs Basel III vs SOC 2 Type II

9. Real-Time Machine Learning Fraud Detection Pipeline

To combat account takeover (ATO) and authorized push payment (APP) fraud, modern core banking architectures route payment transactions through an in-memory scoring pipeline executing under 15 milliseconds:

package fraud

import (
	"context"
	"math"
	"time"
)

type TransactionFeatureVector struct {
	AmountMicros           int64
	VelocityLastHour       int
	DeviceRiskScore        float64
	GeoDistanceKm          float64
	IsKnownBeneficiary     bool
}

type FraudDecision string

const (
	DecisionApprove FraudDecision = "APPROVE"
	DecisionChallenge FraudDecision = "STEP_UP_CHALLENGE"
	DecisionDecline FraudDecision = "DECLINE"
)

type FraudEngine struct {
	riskThresholdChallenge float64
	riskThresholdDecline   float64
}

func NewFraudEngine() *FraudEngine {
	return &FraudEngine{
		riskThresholdChallenge: 0.65,
		riskThresholdDecline:   0.88,
	}
}

func (e *FraudEngine) ScoreTransaction(ctx context.Context, f TransactionFeatureVector) FraudDecision {
	var score float64

	// Feature 1: High velocity penalty
	if f.VelocityLastHour > 5 {
		score += 0.25
	}

	// Feature 2: High amount penalty
	if f.AmountMicros > 100_000_000_000 { // > $100k
		score += 0.30
	}

	// Feature 3: Geo distance velocity anomaly
	if f.GeoDistanceKm > 1000.0 {
		score += 0.35
	}

	// Feature 4: Device risk multiplier
	score += f.DeviceRiskScore * 0.20

	if f.IsKnownBeneficiary {
		score = math.Max(0.0, score-0.20)
	}

	switch {
	case score >= e.riskThresholdDecline:
		return DecisionDecline
	case score >= e.riskThresholdChallenge:
		return DecisionChallenge
	default:
		return DecisionApprove
	}
}

10. Production Postmortem: Mitigating Rogue DB Administrator Data Tampering

A mid-tier commercial bank discovered that an internal systems engineer altered historical ledger records to hide unauthorized overdraft disbursements:

1. Incident Discovery: Annual external regulatory inspection uncovered an imbalance between total asset accounts and cash reserves.
2. Vulnerability Analysis: The database audit trail was stored as standard PostgreSQL rows without cryptographic chaining. The privileged user updated both accounts and audit_log tables directly using database administrator credentials.
3. Architectural Remediation: Deployed the Merkle tree audit engine. Ledger journal hashes are streamed in real time to write-once-read-many (WORM) cloud storage buckets with cryptographic legal hold, ensuring that any subsequent modification generates an immediate cryptographic alert.

11. Production DPoP & Token-Binding Engine in Go 1.25

To satisfy FAPI 2.0 security specifications for Open Banking APIs, applications must cryptographically bind access tokens to client ephemeral key pairs via Demonstrating Proof-of-Possession (DPoP - RFC 9449):

package security

import (
	"crypto/sha256"
	"encoding/base64"
	"errors"
	"fmt"
	"strings"
	"time"
)

type DPoPProof struct {
	JTI        string
	HTTPMethod string
	HTTPURI    string
	IssuedAt   time.Time
	PublicKey  string
}

type DPoPValidator struct {
	seenJTIs     map[string]time.Time
	maxClockSkew time.Duration
}

func NewDPoPValidator(skew time.Duration) *DPoPValidator {
	if skew <= 0 {
		skew = 60 * time.Second
	}
	return &DPoPValidator{
		seenJTIs:     make(map[string]time.Time),
		maxClockSkew: skew,
	}
}

func (v *DPoPValidator) ValidateProof(proof DPoPProof, expectedMethod string, expectedURI string) error {
	if !strings.EqualFold(proof.HTTPMethod, expectedMethod) {
		return fmt.Errorf("method mismatch: expected %s, got %s", expectedMethod, proof.HTTPMethod)
	}

	if proof.HTTPURI != expectedURI {
		return fmt.Errorf("URI mismatch: expected %s, got %s", expectedURI, proof.HTTPURI)
	}

	now := time.Now()
	if proof.IssuedAt.After(now.Add(v.maxClockSkew)) || proof.IssuedAt.Before(now.Add(-v.maxClockSkew)) {
		return errors.New("proof timestamp outside acceptable clock skew window")
	}

	if _, exists := v.seenJTIs[proof.JTI]; exists {
		return errors.New("replay attack detected: JTI token already consumed")
	}

	v.seenJTIs[proof.JTI] = proof.IssuedAt
	return nil
}

func (v *DPoPValidator) ComputeThumbprint(publicKeyBytes []byte) string {
	h := sha256.Sum256(publicKeyBytes)
	return base64.RawURLEncoding.EncodeToString(h[:])
}

12. Penetration Testing & Cryptographic Fault Injection Results

To prove resistance against sophisticated internal and external attack vectors, the security infrastructure underwent empirical red-teaming:

Additional Architectural FAQs

Strategic Banking Architecture References

• Learn about high-concurrency financial systems in our Banking Microservices Architecture Guide.
• Master resilient distributed systems in our Go Microservices Production Guide.
• Chart your technical journey with the Engineering Reading Map.
• For mission-critical core banking architecture advisory, Hire Me for advisory engagements.
