AI Observability & Evals: Production Monitoring Guide

Prerequisite: Familiarity with the concepts introduced in Part 5 — Operating Model. Review it first if the terminology in this part is unfamiliar.

Answer-first: AI Observability applies Site Reliability Engineering (SRE) principles to generative AI systems through OpenTelemetry gen_ai semantic conventions, distributed prompt tracing, and continuous evaluation pipelines. This framework detects silent model drift, monitors LLM API token expenses, and reduces failure detection time from weeks to under five minutes.

Many engineers in the current market can build an AI App in a weekend. But those who know how to operate an AI system in production (AI Platform Operations) can be counted on one hand.

The biggest difference between a “Demo” and an “Enterprise Platform” lives in one word: Observability.

1. The Blind Spots of AI in Production

When a traditional web app crashes (e.g., lost database connection), the system throws a 500 error code. An SRE (Site Reliability Engineer) looks at the logs and knows exactly how to fix it.

But when AI fails, it does not throw an error. The LLM will confidently produce a buggy code snippet, or a completely wrong (Hallucinated) answer—delivered in a professional tone. Without a monitoring system, you are driving on a freeway blindfolded.

🔥 [Production Failure]: Silent Model Drift An internal RAG system at a bank, used to assist credit advisors, operated flawlessly for the first 2 months. In month three, the Cloud LLM provider silently updated the model’s weights to optimize costs. Instantly, the RAG system’s accuracy plummeted from 95% to 70%. Bank employees began advising hundreds of customers with incorrect interest rates. The company was completely unaware until customers threatened legal action—because no output quality monitoring system (Evals) had ever been established. 📊 Impact Metrics: Lost trust with 400+ customers; the Legal team had to intervene to settle interest rate risk disputes. 📈 Before/After (Post Observability & Evals):

• Before: Mean Time To Detect (MTTD) for failures was 3 weeks (discovered only after customer complaints).
• After: MTTD dropped to < 5 minutes. The Evals Pipeline immediately blocks any new model configuration if the Quality Score drops below 0.90 on the Golden Dataset.

2. AI Observability Architecture (The SRE Mindset)

To prevent the disaster above, the AI Gateway (LiteLLM) we established in Part 2 (AI Platform Layer — coming soon) must be connected to a dedicated Telemetry system (such as Langfuse, LangSmith, or DataDog LLM Observability).

AI Observability Architecture Topology: The diagram illustrates async trace data collection from the LiteLLM Gateway into an observability platform paired with an LLM-as-a-Judge evaluation pipeline.

graph TD
    User["Dev / Ops User"] --> Gateway[LiteLLM Gateway]
    Gateway --> LLM["Cloud / Local LLMs"]

    Gateway -.->|Async Traces & Spans| Telemetry["Observability Platform<br/>'*Langfuse / LangSmith*'"]

    Telemetry --> Dash1["Cost & Latency Dashboard"]
    Telemetry --> Audit["Audit Logs & Prompt Provenance"]

    subgraph "Evaluation Pipeline (Evals)"
        Telemetry -.->|Sampled Outputs| Judge[LLM-as-a-Judge]
        Dataset[("Golden Datasets")] --> Judge
        Judge --> Drift["Alert: Model Drift / Hallucination"]
    end

    style Telemetry fill:#d4efdf,stroke:#27ae60,stroke-width:2px
    style Judge fill:#f9e79f,stroke:#f1c40f,stroke-width:2px

3. Core Metrics to Monitor

The Platform Engineering team must track these 4 vital metrics on the Dashboard:

1. Token Cost Monitoring: Real-time cost charts broken down by department, user, and model. Immediate Red Alert if the Marketing team unexpectedly burns $50/hour.
2. Prompt Tracing: When AI gives a wrong answer, the SRE must be able to see exactly what the input Prompt chain was, and which RAG documents were stuffed into the Context Window.
3. AI Latency Monitoring: Track response latency. If the claude-3.5-sonnet model suddenly takes 15 seconds to produce the first token (Time-to-First-Token), the Gateway must automatically Fallback to another model and log the event.
4. Human Override Flows: The rate at which users click the Dislike (Thumbs down) button or manually override (edit) an AI answer. A rising override rate is a leading indicator of system degradation.

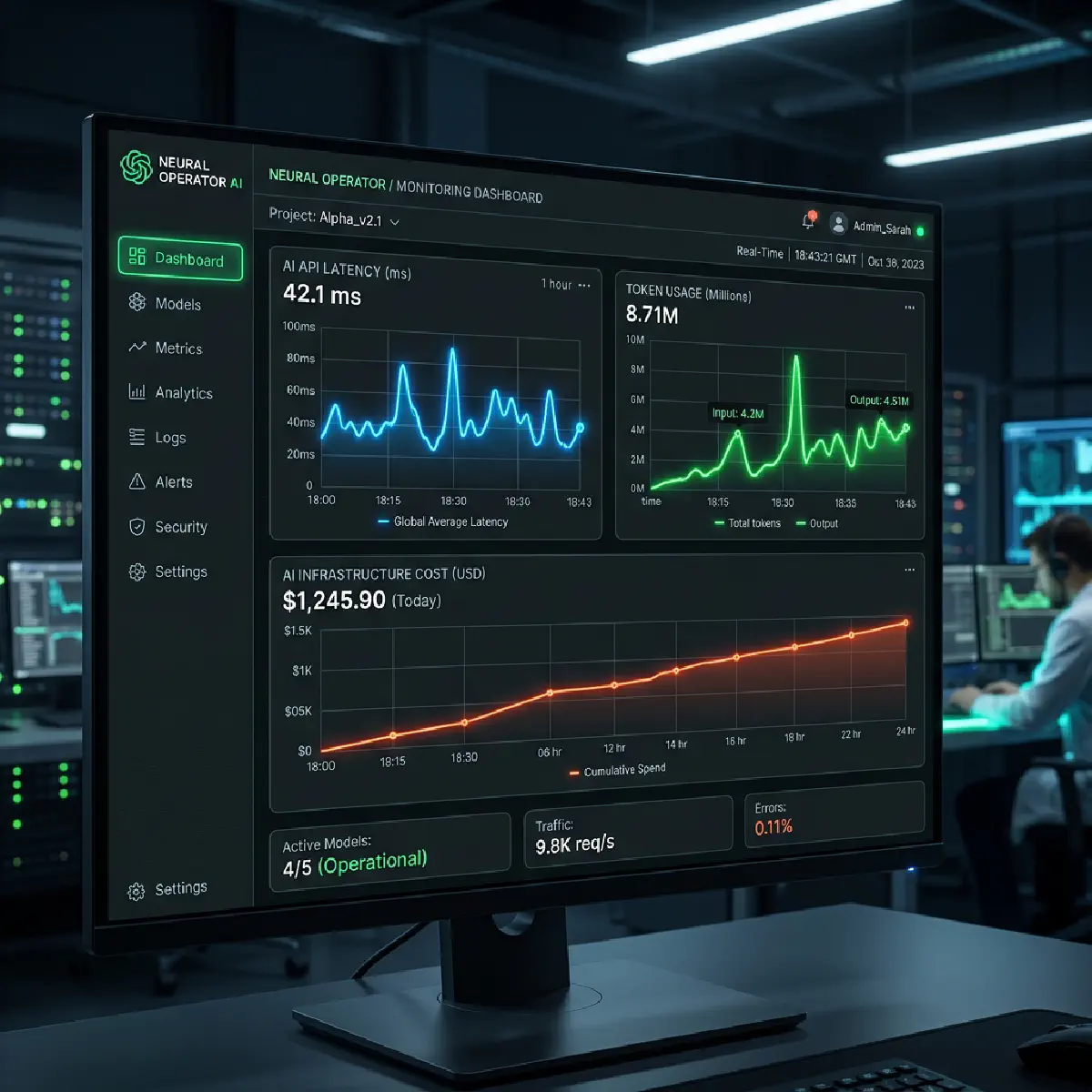

Simulated Monitoring Dashboard (Example from Langfuse/LangSmith):

4. The Evaluation Pipeline (Evals): The Heart of Scaling AI

In traditional Software Engineering: Don’t deploy code without Unit Tests. In AI Engineering: Don’t deploy a Prompt without running it through an Evals Pipeline.

Prompts are Code. Every time a Tech Lead changes a single line in .cursorrules (Part 1), how do you know whether the system got better or worse? The solution is establishing Evals (Automated Evaluation):

4.1. Golden Datasets

Build a file containing approximately 100 questions alongside their perfect, authoritative answers (written by a Senior Domain Expert). This is called a Golden Dataset.

4.2. Regression Testing for Prompts

Every time a Prompt configuration or VectorDB (RAG) structure is modified, the CI/CD pipeline automatically feeds all 100 Golden Dataset questions to the AI. Then, a powerful model (LLM-as-a-Judge) scores the outputs to check whether the new answers have drifted from the “Golden” baseline.

4.3. Retrieval Quality Metrics

Measure Precision (Did the RAG fetch the correct documents?) and Recall (Did the RAG miss any critical documents?). Low Precision means the system is injecting too much Noise into the Context Window.

[OpenTelemetry GenAI Spans] [Code Snippet]: The Ragas evaluation pipeline executes faithfulness and answer relevance metrics on generated responses against a ground-truth golden dataset.

from ragas import evaluate
from ragas.metrics import faithfulness, answer_relevance
from datasets import Dataset

# Sample golden dataset evaluation payload
eval_data = {
    "question": ["What is the DB pool connection limit?"],
    "contexts": [["The database connection pool limit is set to 50 active connections."]],
    "answer": ["The database pool allows a maximum of 50 active connections."],
    "ground_truth": ["50 active connections"]
}

dataset = Dataset.from_dict(eval_data)
results = evaluate(dataset=dataset, metrics=[faithfulness, answer_relevance])
print(f"Faithfulness Score: {results['faithfulness']:.2f}")

[!IMPORTANT] Cost Analysis Running the Evals pipeline costs approximately $10 per configuration commit. But it protects the company from “Model Drift” disasters costing thousands of dollars and destroying end-user trust.

5. Advanced Observability: OpenTelemetry GenAI Semantic Conventions

Most teams stop at custom logging. OpenTelemetry (OTel) introduced the gen_ai semantic conventions—the industry standard for vendor-neutral LLM telemetry. Adopting OTel means your traces work identically whether you switch from Langfuse to Datadog or Grafana tomorrow.

Key gen_ai attributes every trace should capture:

OpenLIT Auto-Instrumentation Script: The snippet demonstrates initializing OpenLIT with OpenTelemetry GenAI semantic conventions to capture LLM traces and route them to an internal observability backend.

import openlit

# One-line setup — automatically captures all LLM calls via OTel
openlit.init(
    otlp_endpoint="http://langfuse-internal:4318",  # Routes to your Observability backend
    application_name="billing-ai-agent",
    environment="production",
)

# From this point, all OpenAI / Anthropic / LiteLLM calls are traced automatically
# with gen_ai.* attributes attached — no further code changes required.

5.1. Agentic Workflow Observability: Tracing “Thought Chains”

Single LLM calls are easy to trace. Agentic loops are not. When Agent A calls Tool B which triggers Agent C, the trace must stitch across service boundaries.

Agentic Workflow Thought Chain Spans: The diagram maps a multi-step agentic trace tree across intent parsing, MCP tool call execution, RAG retrieval, LLM generation, and dual validation spans.

graph LR
    U[User Query] -->|Span 1: intent_parse| Router[Router Agent]
    Router -->|Span 2: tool_call| Jira[Jira MCP Tool]
    Jira -->|Span 3: rag_retrieve| RAG[Vector DB Lookup]
    RAG -->|Span 4: llm_generate| LLM[Claude 3.5]
    LLM -->|Span 5: output_validate| Guard[Dual LLM Validator]
    Guard -->|Span 6: response| U

    style RAG fill:#d4efdf,stroke:#27ae60
    style Guard fill:#f9e79f,stroke:#f1c40f

Each numbered span is a child span in a single trace tree. When production breaks at Step 4, you click directly into Span 4 to see exactly which RAG chunks were injected and what the model received—not a wall of unstructured logs.

6. End-to-End Integration Scenario: The “Shipping Cost Agent” System

To make these concepts concrete, this complete observability integration scenario for a multi-service AI Agent system illustrates operational tracking.

Scenario: An internal agent answers customer queries about shipping costs, using RAG (internal price tables) + a Calculation Tool.

Shipping Cost Agent Telemetry Sequence: The sequence diagram details the end-to-end telemetry flow across user request, RAG pricing retrieval, tool execution, and automated Evals evaluation.

sequenceDiagram
    participant User
    participant Gateway as LiteLLM Gateway
    participant Agent as Orchestrator Agent
    participant RAG as Vector DB (Pricing Tables)
    participant Tool as Shipping Calc Tool
    participant OTel as Langfuse / OTel Backend

    User->>Gateway: "What's the express shipping cost for 5kg to HCMC?"
    Gateway->>OTel: [Span Start] gen_ai.operation = chat
    Gateway->>Agent: Route query to Orchestrator
    Agent->>RAG: Retrieve: pricing_zone=HCMC, type=express
    RAG-->>Agent: Returns rate_card chunk (score: 0.97)
    Agent->>Tool: calculate_shipping(weight=5, zone="HCMC", type="express")
    Tool-->>Agent: Returns $4.20
    Agent->>Gateway: Final answer composed
    Gateway->>OTel: [Span End] tokens=1240, latency=2.1s, cost=$0.003
    Gateway-->>User: "Express shipping for 5kg to HCMC costs $4.20."
    OTel->>OTel: Evals check: Score=0.99 [PASS] No drift detected

Monitoring outcome: Any deviation in the rate_card retrieval score (RAG Precision) or calculation Tool latency immediately surfaces as an anomaly on the dashboard—before any customer is given a wrong price.

🛠 Practical Exercise: Instrument Your First LLM Call with OTel

Follow these concrete steps to instrument your Python application with OpenTelemetry GenAI spans:

1. Install OpenLIT in your Python project: pip install openlit.
2. Add setup lines at the top of your main application file, pointing to a local Langfuse or Jaeger instance.
3. Make 10 diverse LLM calls (mix of chat, RAG, and tool calls).
4. Open Langfuse UI and inspect the trace tree. Identify: (a) which call had the highest token cost? (b) which RAG retrieval returned the lowest relevance score?

📚 External Resources & Tooling

Industry standard specifications and platforms for AI Observability:

• Standard: OpenTelemetry GenAI Semantic Conventions — The official specification for vendor-neutral GenAI telemetry attributes.
• Auto-instrumentation: OpenLIT — OTel instrumentation for major LLM providers.
• Observability Platforms: Langfuse (Open-source observability), LangSmith (Evaluation framework), Arize Phoenix (Evals platform).

Key Takeaways

Deploying production AI requires continuous OpenTelemetry distributed tracing, automated evaluation guardrails, and real-time cost monitoring.

AI Observability provides operational visibility through dashboards, while the Evals Pipeline supplies quantitative metrics to evaluate quality. Together, they enable engineering teams to move beyond proof-of-concepts to production-grade systems.

However, operational monitoring must be paired with zero-trust security controls to prevent prompt injection and data exfiltration.

Proceed to Part 7 — AI Security Engineering to implement security guardrails across AI attack surfaces.

Frequently Asked Questions

Why do traditional application monitoring tools fail to detect AI system failures?

Traditional monitoring tools look for HTTP 500 error codes and unhandled exceptions. AI systems frequently fail without throwing errors by generating confident, grammatically correct hallucinations or incorrect code, which traditional logs cannot detect without semantic evaluation layers.

What are OpenTelemetry gen_ai semantic conventions?

OpenTelemetry gen_ai conventions define vendor-neutral standard attributes for tracing LLM requests, including model identifiers, token consumption counts, temperature settings, and tool invocation spans. Adopting these conventions ensures telemetry interoperability across Langfuse, Datadog, and Grafana backends.

How does an automated Evals pipeline prevent silent model drift?

An Evals pipeline executes a Golden Dataset of curated prompts against new model releases or prompt configurations in CI/CD. Using LLM-as-a-Judge and Ragas metrics (faithfulness, answer relevance), the pipeline automatically blocks deployments if quality scores drop below established baselines.

🔗 Next Step: Continue to Part 7 — Ai Security Engineering for the following module in the series.
